Home / Products / Aras 335-45
Roof Panel
Aras 335 / 45
Our Aras 335/45 roof panel is meticulously crafted to deliver exceptional performance in high water-carrying capacity, load-bearing capacity, weather resistance, and wind uplift resistance.
Available Colours:
PUF Panel Roof High-Performance Roofing Solutions for Modern Construction
High-quality roofing begins with materials that deliver strength, insulation and long-term value. Today, PUF panel roof systems have become a preferred choice for industrial, commercial and residential projects due to their exceptional durability, thermal performance and ease of installation. Whether you require a sandwich panel roof, PUF panel roof sheet, or PUF sheet roofing, these systems offer efficiency, reliability and cost-effective performance for Indian climatic conditions.
| Effective Covering Width | 1000mm |
| Overall Width | 1090mm |
| Advisable Length | 1500mm to 16000mm |
| Top Thickness | 0.35mm to 0.60mm |
| Bottom Thickness | 0.35mm to 0.60mm (Above 0.35mm orders requires MOQ) |
| Coating mass | Z70 Gsm, AZ150 Gsm or as per client requirements (it requires MOQ) |
| Paint type | RMP, SDP, SMP*, PVDF ( it requires MOQ) |
Our Range of PUF panels for all your roofing and wall cladding needs.
A sandwich panel roof consists of protective outer and inner sheets with an insulation core.
Outer & Inner Sheet Choices
- Pre-painted galvanised steel
- Stainless steel
- Aluminium
- GRP
- Membrane finishes
Insulation Core Options
- Polyurethane (PU)
- Polyisocyanurate (PIR)
- Rock wool
PUF Panel Roof Sheet Technical Excellence
A well-engineered PUF panel roof sheet, such as a 1000 mm effective cover profile, is crafted to achieve maximum performance in demanding conditions.
Profile Specifications

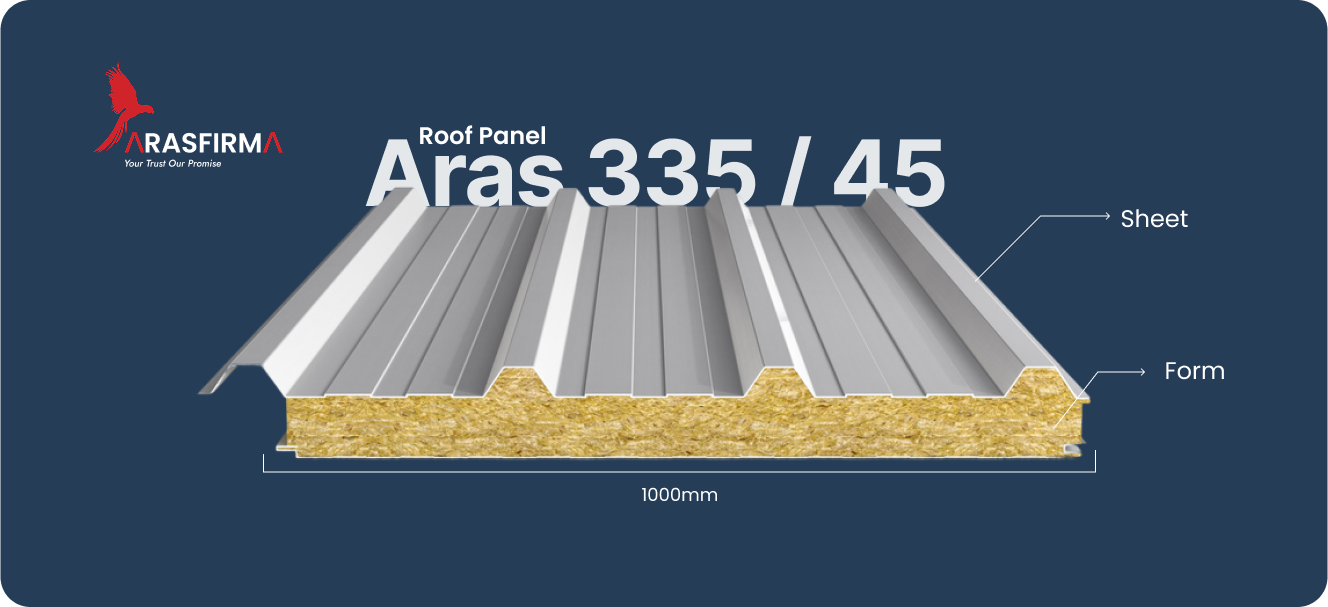

The roofing profile offers an effective cover width of 1000 mm and an overall width of 1090 mm, ensuring optimal coverage and fewer installation joints. It features four crests spaced at 335 mm, paired with a 45 mm deep rib, a design that significantly boosts rigidity and improves water flow during heavy rains. The sheets can be manufactured in lengths ranging from 1500 mm to 16,000 mm, offering flexibility for various building spans and architectural layouts.
Sheet Thickness Options
Both top and bottom sheets are available in thicknesses ranging from 0.35 mm to 0.60 mm, allowing customisation based on structural load requirements, insulation needs, and project budget. This adjustable thickness range ensures the panel can be adapted for light commercial use as well as heavy industrial applications.
Coating Systems
The panels are protected with advanced coating options, including Z70 GSM, AZ150 GSM, and additional coatings tailored to project needs. These coatings significantly enhance corrosion resistance, ensuring long-term durability even in humid, coastal or industrial environments.
Applications of Sandwich panel Roofing
Sandwich panel roofing is widely used across industries due to its insulation performance, structural strength and long-lasting durability.
Cold Storages
PUF panels help maintain consistent low temperatures with their superior insulation. They minimise energy loss, making them ideal for perishables and temperature-sensitive goods.
Industrial Buildings
Strong load-bearing capacity allows these sheets to withstand heavy machinery operations and structural vibrations. They also reduce internal heat buildup, improving working conditions.
Clean Rooms
Their airtight and vapour-resistant design makes them suitable for controlled environments. The smooth surfaces promote hygiene and easy maintenance.
Commercial Buildings
PUF panels offer a clean, modern aesthetic with excellent durability. They help reduce air-conditioning loads, improving operational efficiency.
Warehouses
The panels support wider spans while delivering robust protection from heat and moisture. This ensures stored goods remain safe in varying weather conditions.
Prefabricated Cabins
Lightweight yet strong panels make cabins easy to transport and assemble. They provide reliable shelter with excellent thermal comfort.
Poultry Farms
Thermal insulation helps maintain ideal temperatures for livestock. Panels also resist bacterial growth due to their hygienic surface finish.
Hospitals & Labs
Their ability to create clean, climate-controlled spaces makes them suitable for sensitive medical environments. They also support quick installation for urgent expansions.
Residential Buildings
PUF roofing reduces indoor heat gain, enhancing comfort in living spaces. It's a cost-effective option for modern, energy-efficient homes.
Food Processing Units
The stable temperature control provided by PUF panels ensures compliance with food safety standards. They also reduce long-term operating costs.
Transport Containers
High insulation efficiency ensures agricultural goods, chemicals and perishable items remain protected during transit. Their structural rigidity withstands handling and movement.
Why Choose Us?
Your Reliable Partner in Paneling Solutions — Backed by Experience, Driven by Innovation
Quality
Over a decade of delivering excellence in panel manufacturing.
Customization
Tailor-made paneling solutions designed to meet unique client needs.
Support
Fast lead times backed by responsive, expert customer service.
Nationwide Reach
Seamless delivery and installation support across the country.
Get a Quote Today
Ready to upgrade your roofing with Aras 335 / 45?
Why Choose Sandwich Roofing Sheets?
These panels are crafted from high-quality coated steel and aluminium, with advanced insulation cores, ensuring they remain corrosion-resistant and structurally stable for years.
With a thermal conductivity (K-value) of 0.020 W/mK, PUF panels deliver outstanding insulation that helps maintain stable indoor temperatures. It reduces cooling or heating requirements, making them ideal for cold storage, warehouses, food processing units and temperature-sensitive facilities.
The deep rib design and symmetrical crest spacing allow the panels to withstand heavy rainfall, strong winds and significant mechanical loads. It makes puf panel roof sheets suitable for large-span industrial structures and regions prone to monsoons.
The insulation core uses CFC/HCFC-free chemicals and an N-pentane blowing agent, ensuring zero ozone depletion.
PUF and PIR variants offer improved fire performance, with mineral wool options available for enhanced resistance where required. It improves safety in commercial, industrial, and institutional applications.
The panels are designed as self-sufficient units, preventing moisture ingress and vapour leakage.
Their lightweight yet sturdy structure allows for rapid installation with minimal labour. It reduces project timelines and ensures the roofing system is operational more quickly than with conventional systems.

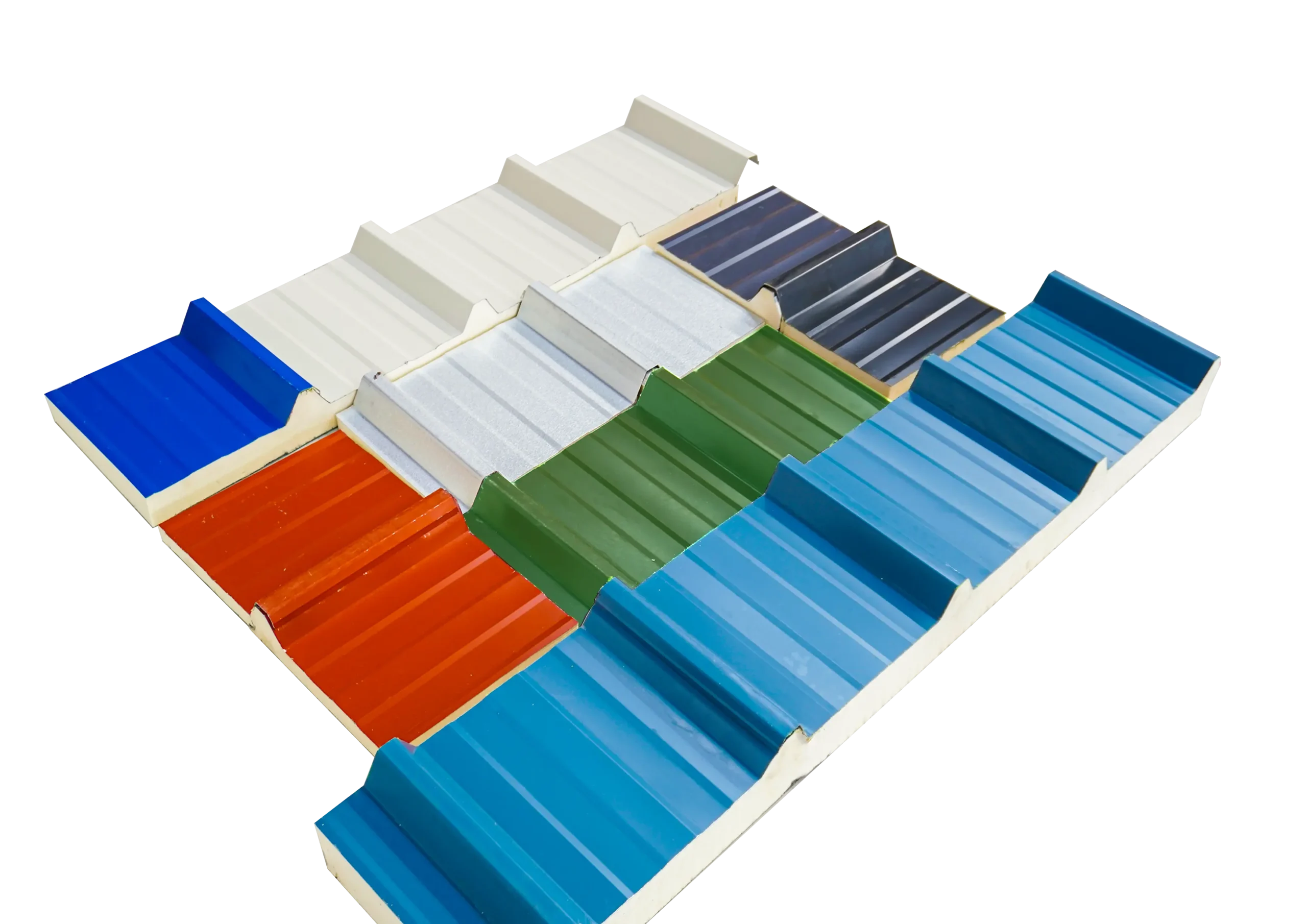

More than 45 colour variants are available for large-scale orders, enabling architects and project planners to align roofing elements with the building’s theme or brand identity.
