Superior Wall Insulation Panel
Arasfirma Mono Wall PUF Panels are versatile insulated wall panels designed for industrial sheds, warehouses, clean rooms, and commercial buildings. With a high-density PUF core sandwiched between two...
Available Colors:Brick Red
1020 mm
Panel Width
Custom
Panel Length
30mm – 150mm
Thickness

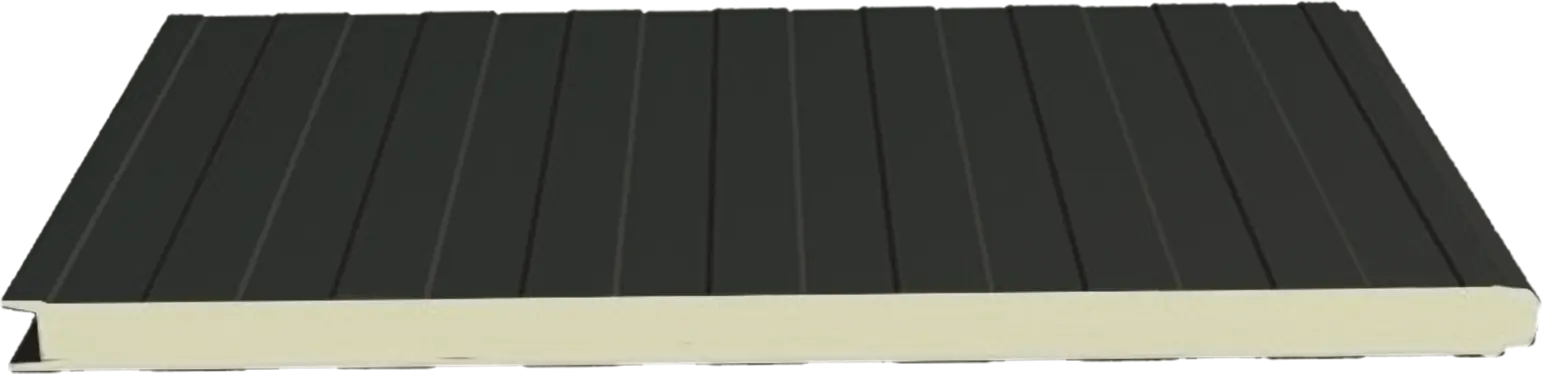

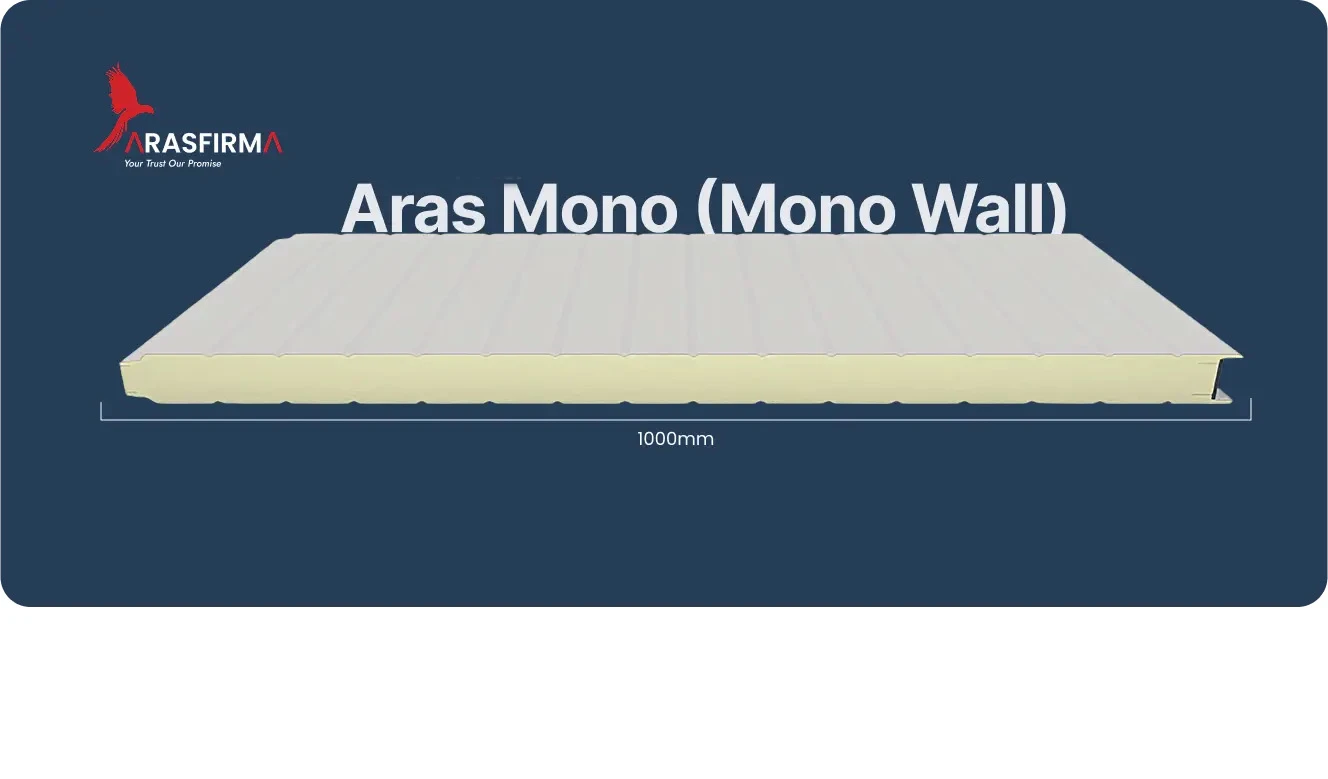

Arasfirma Mono Wall PUF Panels are versatile insulated wall panels designed for industrial sheds, warehouses, clean rooms, and commercial buildings. With a high-density PUF core sandwiched between two steel sheets, these panels provide superior thermal insulation, structural integrity, and a clean aesthetic finish. Available in multiple profiles and colors to suit any architectural requirement.
Why Choose This Panel
These panels are crafted from high-quality coated steel and aluminium, with advanced insulation cores, ensuring they remain corrosion-resistant and structurally stable for years U-value as low as 0.2 W/m²K — reduces cooling and heating costs significantly.
With a thermal conductivity (K-value) of 0.020 W/mK, PUF panels deliver outstanding insulation that helps maintain stable indoor temperatures. It reduces cooling or heating requirements, making them ideal for cold storage, warehouses, food processing units and temperature-sensitive facilities. U-value as low as 0.2 W/m²K — reduces cooling and heating costs significantly.
The deep rib design and symmetrical crest spacing allow the panels to withstand heavy rainfall, strong winds and significant mechanical loads. It makes puf panel roof sheets suitable for large-span industrial structures and regions prone to monsoons. U-value as low as 0.2 W/m²K — reduces cooling and heating costs significantly.
The insulation core uses CFC/HCFC-free chemicals and an N-pentane blowing agent, ensuring zero ozone depletion. deep rib design and symmetrical crest spacing allow the panels to withstand heavy rainfall, strong winds and significant mechanical loads. It makes puf panel roof sheets suitable for large-span industrial structures and regions prone to monsoons. U-value as low as 0.2 W/m²K — reduces cooling and heating costs significantly.
PUF and PIR variants offer improved fire performance, with mineral wool options available for enhanced resistance where required. It improves safety in commercial, industrial, and institutional applications. insulation core uses CFC/HCFC-free chemicals and an N-pentane blowing agent, ensuring zero ozone depletion. deep rib design and symmetrical crest spacing allow the panels to withstand heavy rainfall, strong winds and significant mechanical loads. It makes puf panel roof sheets suitable for large-span industrial structures and regions prone to monsoons. U-value as low as 0.2 W/m²K — reduces cooling and heating costs significantly.
The panels are designed as self-sufficient units, preventing moisture ingress and vapour leakage. and PIR variants offer improved fire performance, with mineral wool options available for enhanced resistance where required. It improves safety in commercial, industrial, and institutional applications. insulation core uses CFC/HCFC-free chemicals and an N-pentane blowing agent, ensuring zero ozone depletion. deep rib design and symmetrical crest spacing allow the panels to withstand heavy rainfall, strong winds and significant mechanical loads. It makes puf panel roof sheets suitable for large-span industrial structures and regions prone to monsoons. U-value as low as 0.2 W/m²K — reduces cooling and heating costs significantly.
Their lightweight yet sturdy structure allows for rapid installation with minimal labour. It reduces project timelines and ensures the roofing system is operational more quickly than with conventional systems.PUF and PIR variants offer improved fire performance, with mineral wool options available for enhanced resistance where required. It improves safety in commercial, industrial, and institutional applications. insulation core uses CFC/HCFC-free chemicals and an N-pentane blowing agent, ensuring zero ozone depletion. deep rib design and symmetrical crest spacing allow the panels to withstand heavy rainfall, strong winds and significant mechanical loads. It makes puf panel roof sheets suitable for large-span industrial structures and regions prone to monsoons. U-value as low as 0.2 W/m²K — reduces cooling and heating costs significantly.
More than 45 colour variants are available for large-scale orders, enabling architects and project planners to align roofing elements with the building's theme or brand identity. lightweight yet sturdy structure allows for rapid installation with minimal labour. It reduces project timelines and ensures the roofing system is operational more quickly than with conventional systems.PUF and PIR variants offer improved fire performance, with mineral wool options available for enhanced resistance where required. It improves safety in commercial, industrial, and institutional applications. insulation core uses CFC/HCFC-free chemicals and an N-pentane blowing agent, ensuring zero ozone depletion. deep rib design and symmetrical crest spacing allow the panels to withstand heavy rainfall, strong winds and significant mechanical loads. It makes puf panel roof sheets suitable for large-span industrial structures and regions prone to monsoons. U-value as low as 0.2 W/m²K — reduces cooling and heating costs significantly.
Technical Excellence
A well-engineered PUF panel roof sheet, such as a 1000 mm effective cover profile, is crafted to achieve maximum performance in demanding conditions.
The roofing profile offers an effective cover width of 1000 mm and an overall width of 1090 mm, ensuring optimal coverage and fewer installation joints. It features four crests spaced at 335 mm, paired with a 45 mm deep rib, a design that significantly boosts rigidity and improves water flow during heavy rains. The sheets can be manufactured in lengths ranging from 1500 mm to 16,000 mm, offering flexibility for various building spans and architectural layouts.
Both top and bottom sheets are available in thicknesses ranging from 0.35 mm to 0.60 mm, allowing customisation based on structural load requirements, insulation needs, and project budget. This adjustable thickness range ensures the panel can be adapted for light commercial use as well as heavy industrial applications.
The panels are protected with advanced coating options, including Z70 GSM, AZ150 GSM, and additional coatings tailored to project needs. These coatings significantly enhance corrosion resistance, ensuring long-term durability even in humid, coastal or industrial environments.
A variety of paint systems, RMP, SDP, SMP and PVDF are available to improve UV stability, colour retention and surface protection. These coatings help maintain the roof's aesthetic appeal while enhancing its resistance to harsh weather.
The insulation core has a density of 40 ± 2 kg/m³ and exhibits exceptional mechanical strength, with tensile, compression, and shear strengths of 150–250 kPa, 100–210 kPa, and 100–240 kPa, respectively. These capabilities ensure the panel remains dimensionally stable under mechanical load, wind pressure and varying temperatures.
PUF panels deliver excellent insulation, with a low thermal conductivity of 0.020 W/mK, helping maintain efficient indoor temperature control. The foam has a 93% closed-cell structure and absorbs only 1% water after 24 hours, preventing moisture penetration and ensuring long-lasting insulation performance.
Sandwich Panel Roof
A sandwich panel roof consists of protective outer and inner sheets with an insulation core.
Insulation Core
Applications
PUF sheet roofing is widely used across industries due to its insulation performance, structural strength and long-lasting durability.
PUF panels help maintain consistent low temperatures with their superior insulation. They minimise energy loss, making them ideal for perishables and temperature-sensitive goods.
Strong load-bearing capacity allows these sheets to withstand heavy machinery operations and structural vibrations. They also reduce internal heat buildup, improving working conditions.

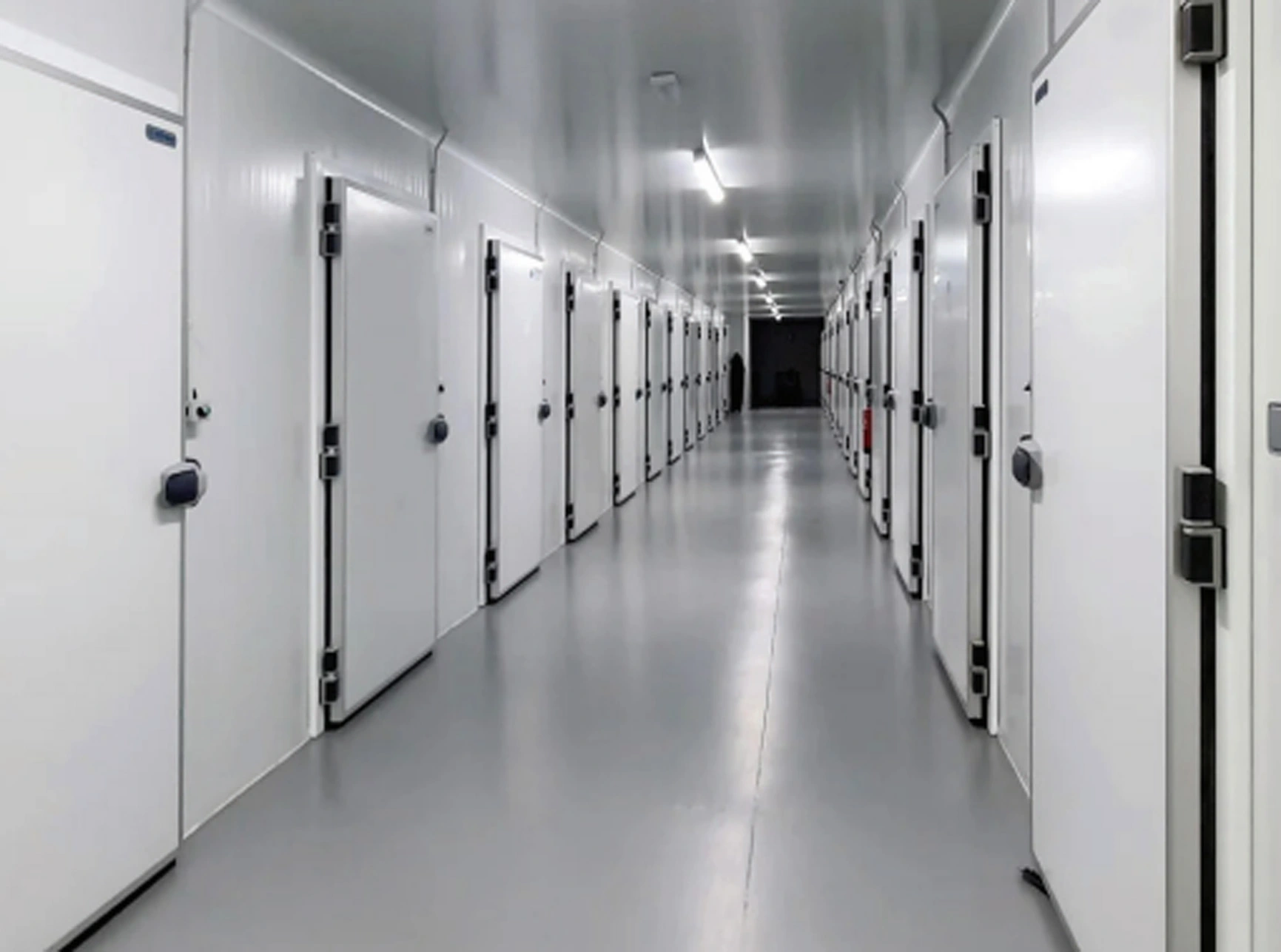

Their airtight and vapour-resistant design makes them suitable for controlled environments. The smooth surfaces promote hygiene and easy maintenance.
PUF panels offer a clean, modern aesthetic with excellent durability. They help reduce air-conditioning loads, improving operational efficiency.
The panels support wider spans while delivering robust protection from heat and moisture. This ensures stored goods remain safe in varying weather conditions.

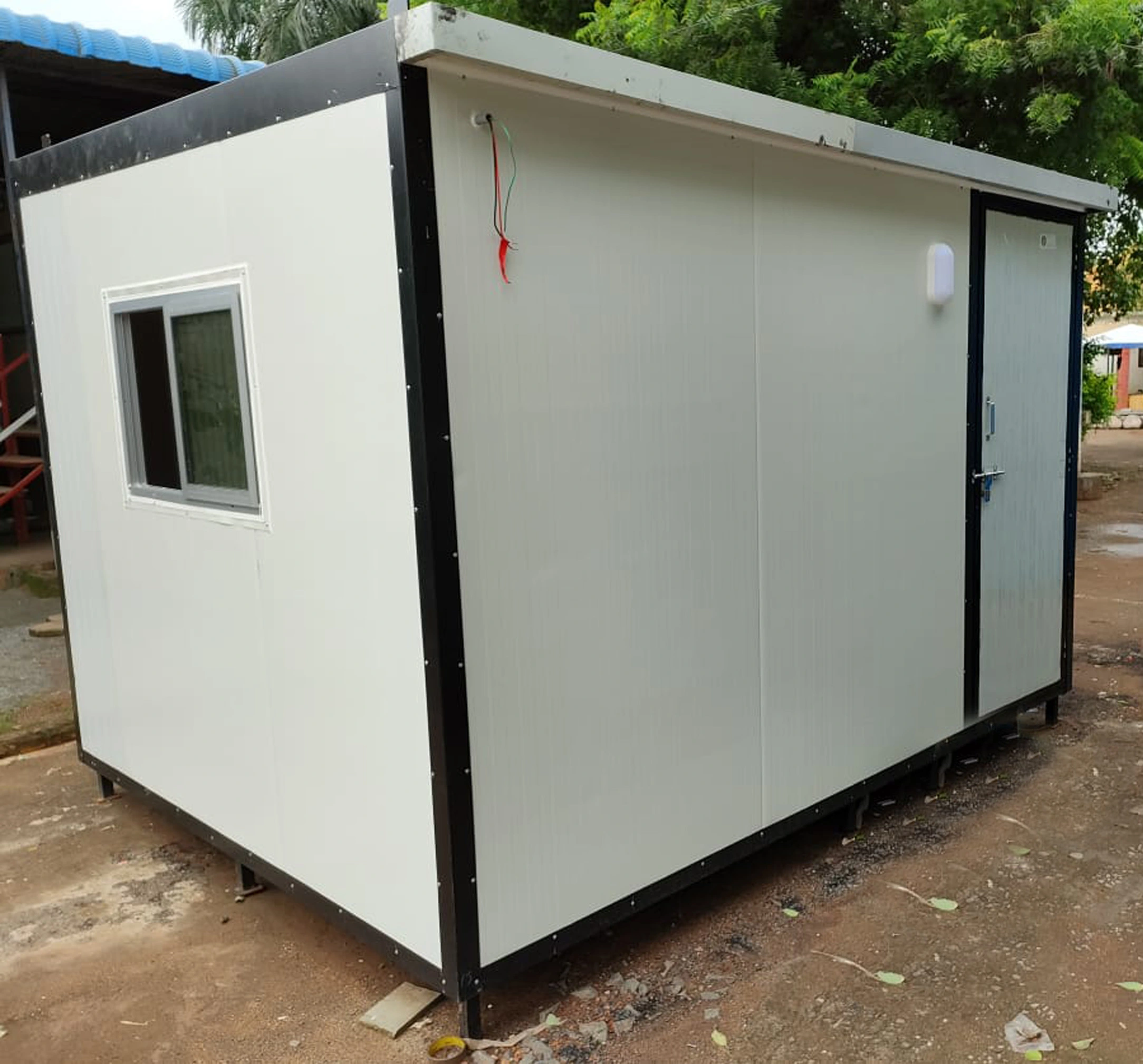

Lightweight yet strong panels make cabins easy to transport and assemble. They provide reliable shelter with excellent thermal comfort.
Thermal insulation helps maintain ideal temperatures for livestock. Panels also resist bacterial growth due to their hygienic surface finish.
Their ability to create clean, climate-controlled spaces makes them suitable for sensitive medical environments. They also support quick installation for urgent expansions.
PUF roofing reduces indoor heat gain, enhancing comfort in living spaces. It is a cost-effective option for modern, energy-efficient homes.
The stable temperature control provided by PUF panels ensures compliance with food safety standards. They also reduce long-term operating costs.
High insulation efficiency ensures agricultural goods, chemicals and perishable items remain protected during transit. Their structural rigidity withstands handling and movement.
Standard roofing colours include Off White, Grey, Brick Red, Sky Blue, Caulified Green, Royal Blue and Bare metal finishes. For large-scale requirements, over 45 custom colour options are available, allowing complete architectural flexibility.
With advanced manufacturing processes, high-quality raw materials, and precision engineering, PUF panel manufacturers today deliver roofing products that stand up to extreme weather conditions, reduce energy costs, and extend the lifespan of any structure. Choosing a PUF panel roof, PUF roofing sheet, or sandwich panel roof system ensures long-term efficiency, stable indoor temperatures, and superior protection, all of which are essential for modern construction in India.
Connection System
Watertight concealed fix system
Low profile aesthetic finish
High strength structural joint
Compatible
Installed at the highest point of the roof to seal joints and prevent water entry. It provides a clean, symmetrical finish across pitched roof structures.
Ideal for simpler roof designs that require minimal detailing. It provides adequate protection while maintaining streamlined aesthetics.
Covers the panel edges where sections meet, creating a smooth, sealed interface. It strengthens structural connections and prevents moisture buildup.
Commonly used along eaves, edges or transitions requiring directional water runoff. It improves drip management and reduces the risk of leakage.
Supports panel alignment where differing levels meet. It enhances rigidity and maintains uniformity in the roofing layout.
Collects and channels rainwater safely away from buildings to prevent erosion and water damage. Essential for large roof spans and areas with heavy rainfall.
These ensure firm panel fastening while preventing water seepage through fixing points. Caps match the panel colour for a seamless finish.
Improves internal ventilation by expelling hot air and fumes. Especially beneficial in industrial sheds where airflow and temperature control are essential.
Used to close gaps between roofing sheets and structural joints, improving sealing, alignment and protection against dust, wind and water entry.
